JUICE BOOSTER 2

The JUICE BOOSTER 2 is a 3-in-1 charging solution for electric vehicles with a Type 2 connection, usable as a wallbox, mobile charger or Type 2 cable with up to 22 kW output. It offers the highest level of safety (IP67/IK10) and FI protection, prevents incorrect operation and enables fast charging at almost any socket worldwide.

1x JUICE BOOSTER 2
1x Adapter Type 2 for JUICE BOOSTER 2
1x adapter CEE32 / 400V
1x adapter CEE16 / 400V
1x adapter CEE32 / 230V
1x adapter CEE16 / 230V

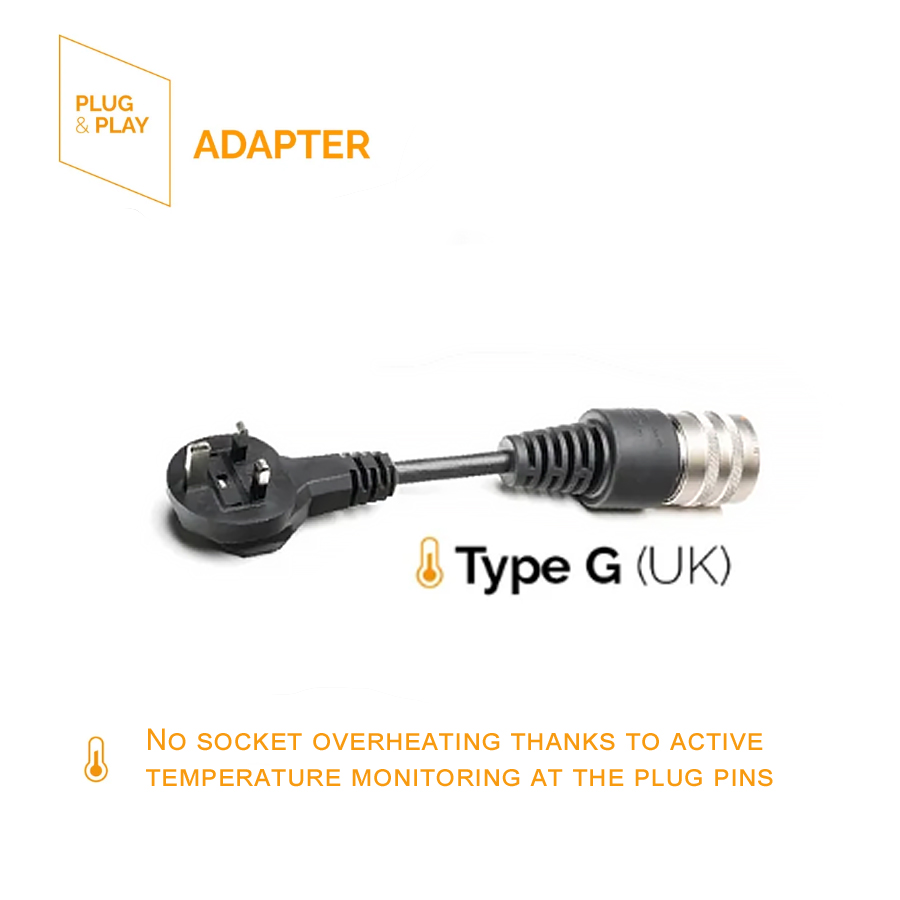

1x adapter type G (GB) with temperature sensor

1x extension cable 5 meters
2x security lock
1x carrying bag

Technical Data

Dimensions: Diameter: 70 mm, Length: 225 mm

Weight: 1.0 kg without cable, 4.1 kg with cable and plug

Perfomance: 1.4 kW – 22 kW AC

Rated current: 6 A to 32 A

Mains voltage: 230V (1-phase) / 400V (3-phase)

Material, color: anodized aluminum, anthracite

Operating temperature: -30 °C to +50 °C

CE conformity: IEC 62752, 62196, 61851-1, Mode 2/3, EMC, RoHS

Protection class – FI – Safety: IP67 – RCD DC 6 mA, AC 30 mA – protective conductor, temperature monitoring

Coupling on the vehicle side: Type 2 (EN 62196)

Cable length: 3.1 m
